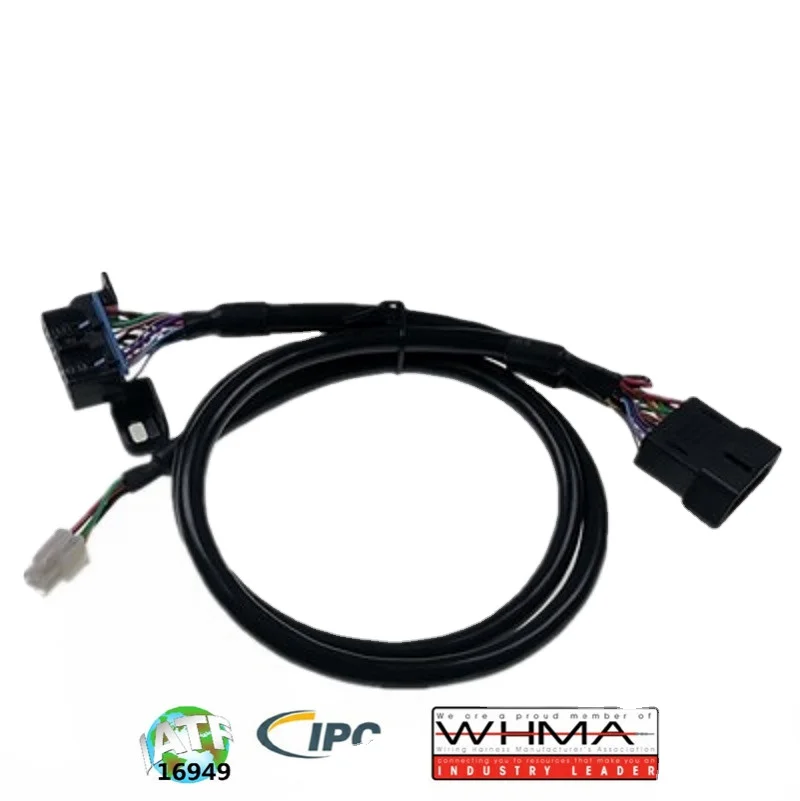

Power Seat Wiring Harness with J1939 Male To J1962 Female 6pin Deutsch Connector IP68 Waterproof for Heavy-Duty Vehicles

The EDG-HD series is an environmentally silicone rubber sealed, thermoplastic cylindrical connector, which is designed to be a faster, easier, trouble free assembly diagnostic connector in heavy-duty industry like truck, bus, cross-country vehicle,crane and forklift etc. When mated, the contacts are protected from water, dust, lubricating oils, fuel, road salt, grease, mud and other contaminants encountered.

Product Specification

• Operating at temperatures -40℃ to +125℃, no Cracking, Chipping or leaking after 20 test cycles from -40℃~+125℃.

• No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000Hz in each of the three mulually perpendicular planes for 2 hours. Force testing report as below shows

• IP68 rating, waterproof withstand immersion under 1.2 meter of water for 24 hours.



• The forece testing as below show

  EDG-HD10-9-1939P-P080

  Terminal type	Wire type	CONT. Retention	REF crimp tensile	Failue Model
  1060-16-0122	UL 1007 18#	20 LBS	>20 LBS	Wire damage
  1060-16-0122	UL 1007 16#	20 LBS	>25 LBS	Grommet broken

EDG-HD16-9-1939S-P080

• Terminal type	Wire type	CONT. Retention	REF crimp tensile	Failue Model
  1060-16-0122	UL 1007 18#	20 LBS	>20 LBS	Wire damage
  1060-16-0122	UL 1007 16#	20 LBS	>25 LBS	Grommet broken

Packaging Details could be customized by client specified.
Normally, the lead time below for reference, the detail according to conversation:

International expressed by DHL, UPS, FedEx, TNT, ARAMEX and EMS etc..

Customers choice for shipping by air, sea or others.

Payment for samples/mass products shall be closing before delivery, amount above 5000 USD according to conversation in somewhere.

Fo

rd Valve Cover Gasket Kit, ignition cable, diagnosis OBD II or J1939 series cable, lamp

wires, rear-view mirror cable, Engine cylinder system wire harness etc..
